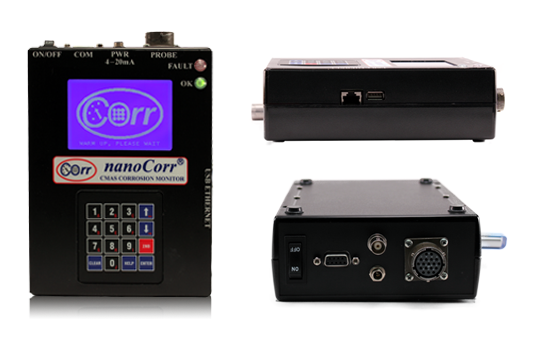

nanoCorr® Field Monitor II

Mouse over image to zoom



Sensitivity/Range for Localized & General Corrosion:
• 0.0005–50 mm/yr or 0.02–2000 mil/yr
• Quantitative for pitting and crevice corrosion rates

Response:
• <20 seconds, suitable for process control

Probe Life:
• >20 years / Reusable after polishing

Environments:
• Enclosure: Optional upgrade to a NEMA 4X /IP56, or to an explosion proof enclosure
• Temperature: -30 to 50°C (-22 to 122°F)

Real Time Outputs/Data Storage:
• 4-20 mA
• RS-232 or RS-485 ports
• On-board data storage (up to 14 MB)
• Ethernet port
• USB port for quick data transfers to office PC and for additional data storage

Number of Probes for Simultaneous Measurement:
• Model F-II-10: One probe with up to 10 electrodes
• Model F-II-16: One Probe with up to 16 electrodes

Power:
• 120/220V AC
• 9 to 30 V (lower power consumption)
• Battery Backup (optional)

Dimension and Weight:
• 180 mm x135 mm x 57 mm ( 7.2"x5.3"x2.3") (without environmental enclosure)
• 2.2 lb (1 kg) (without environmental enclosure)

Software:
CorrLogger™ software is supplied for using a computer to download data from onboard memory, real time display data and change sampling parameters both locally and remotely.
• Optional upgrade to CorrVisual™ software for real time graphical display and analysis of data on a local or a remote computer.

Quantitative and real-time monitoring of pitting & crevice corrosion, and general corrosion in:
• Aqueous solutions
• Humid gases/Air
• Solid deposits
• Undercoating
• Soil / Concrete
• Oil-Water Mixture
• Bio-films
• H2S Systems
• Cathodically protected systems

High-temperature [up to 1700°F (950°C)] and high-pressure [up to 3,000 psi (20 MPa)] systems such as:
• Super critical water systems
• Steam generators / nuclear reactors
• Furnaces
• Fireside components of boilers
• Flue gas systems

Process Control for:
• Effectiveness of cathodic protections
• Corrosion inhibitor dosing

High Throughput Electrochemical Studies:
• Repassivation potentials of large number of specimens
• Polarization curves of large number of specimens

Coming Soon.
